6" x 6" Tri Clamp Base for the MK III Closed Loop Extractor. SS304

  • $ 19831


6" x 6" Tri Clamp Base for the MK III Closed Loop Extractor. SS304

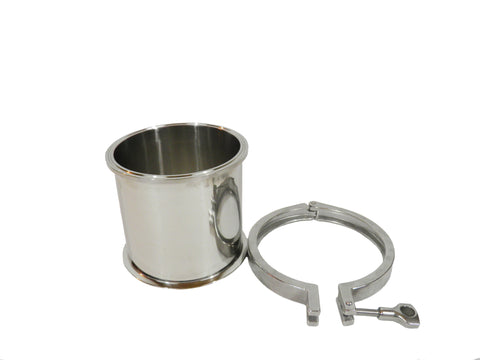

This is a welded bottom base for the MK III Closed Loop Essential Oil Extractor.
These are sanitary, pre-fabricated length of stainless tubing with a tri clamp fitting. They can be used with any tri clamp fittings, allowing our customers to easily put sanitary products together, while eliminating the need for costly welding and fabrication.
This base is the perfect addition if you are in need of a backup, or if you manufacture several different types of essential oils, and eliminates cross contamination with other types of oil.
These bases are manufactured out of 304 food grade stainless steel, and meet all of today's standards for sanitary fittings.
*Clamps and Gaskets sold separately

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .





Pipe Outer Diameter
A

Flange Outer Diameter
B

Pipe Inner Diameter
C



1"

1.98"

.87"

1.5"

1.98"

1.37"

2"

2.52"

1.87"

2.5"

3.05"

2.37"

3"

3.58"

2.87"

4"

4.68"

3.83"

6"

6.57"

5.78"

8"

8.57"

7.78"

10"

10.57"

9.69"

12"

12.57"

11.81"
