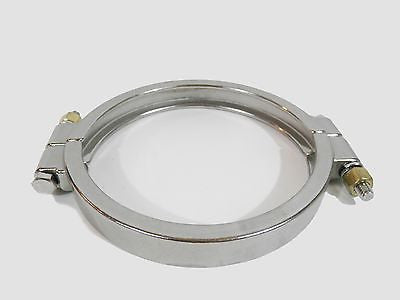

Bolted High Pressure Clamps 1.5" SS304 for Tri Clamp/Tri Clover Fittings

  • $ 921


Bolted High Pressure Clamps 1.5" SS304 for Tri Clamp/Tri Clover Fittings
These high pressure clamps are used to connect two 1.5" tri clamp/tri clover style connections. They are secured with two SS304 bolts, lock washers and brass hex nuts. The bolts, lock nuts and brass hex nuts can be replaced easily as needed. These clamps are manufactured from 304 food grade stainless steel, and meet all of today's sanitary standards for sanitary fittings.
At 70° F, these clamps are rated for a maximum pressure of 1500 PSI.
At 250° F, these clamps are rated for a maximum pressure rating of 1200 PSI.

DETERMINING TRI CLAMP SIZE

Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.

If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .





Pipe Outer Diameter
A

Flange Outer Diameter
B

Pipe Inner Diameter
C

Tri Clamp Dimension Diagram

1"

1.98"

.87"

1.5"

1.98"

1.37"

2"

2.52"

1.87"

2.5"

3.05"

2.37"

3"

3.58"

2.87"

4"

4.68"

3.83"

6"

6.57"

5.78"

8"

8.57"

7.78"

10"

10.57"

9.69"

12"

12.57"

11.81"
