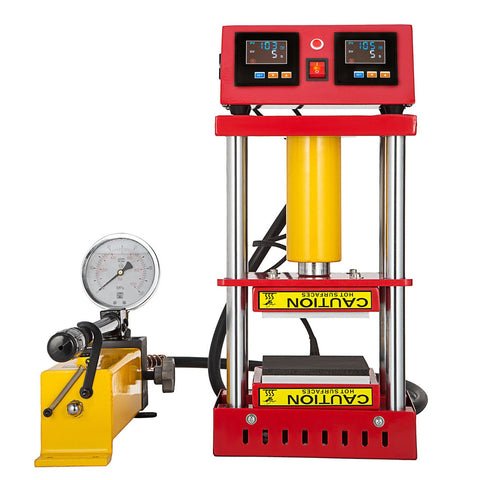

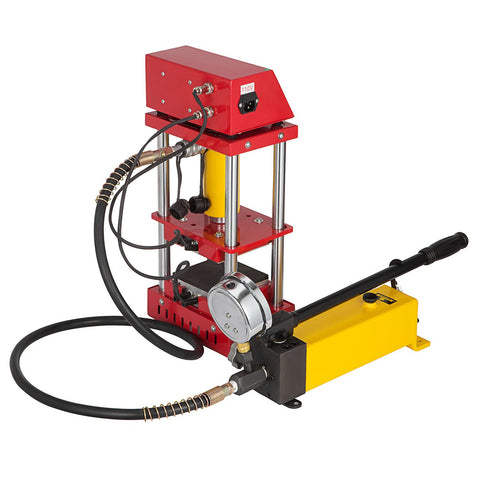

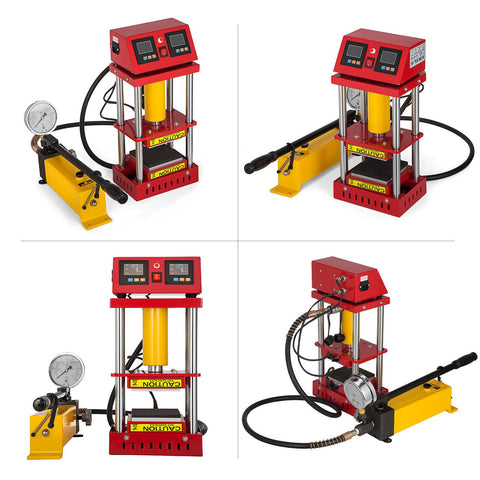

Rosin Heat Press 5ton pressure AR1701

  • $ 41207

Product Description
Specially designed 4.7X4.7 Inch (12X12 cm) rosin heat press with intense pressure, flexible temperature control and movable control box, is sure to obtain best result products for you. The picture transferred is not only clear and vivid, but also durable.

The heat press asks for manual control. Dual independently controlled heat platens allows the user to control the application of temperature and pressure carefully for maximum results. Note that too much heat, time or temperature may result in bad influence on outcomes. So remember to try a small sample to get the right temperature, time and pressure before mass production.


This press can provid double sides heating.
Used for pressing oil, printing textiles and other materials may be used on food, t-shirts, mouse pads, puzzles, ceramic tiles, and other flat surfaces items by using flex or flocking, transfer printing paper, sublimation, etc...
Temperature Setting

1. Press "SET" button.

2. Display shows "SP".

3. Press “△” and “▽” arrows to reach desired temperature.

Time Setting

1. Press "SET" button after setting temp.

2. Press “△” and “▽” arrows to reach desired time.

3. Press "SET" button about 1-2 Seconds after setting time.

4.7X4.7 inch (12X12 cm) heat press machine
Powerful heat press, with a maximum pressure of 5 tons
Non-stick dual heating elements
Clear and vivid image transfer, will last for long
Movable LCD control box for flexible usage
Micro processor precision heat and temperature gauge
Firm construction with good quality, durable for years of trouble-free performance

Voltage: 110V, 60 Hz
Heat Platen Size: 4.7'' x 4.7'' inch (12X12 cm)
Heat Press Style: Swing away
Temperature Range: 0-250 ℃
Time Range: 0-999 Seconds
Pressure: 5 ton maximum
Gross Weight: 36.4 lb (16.5 kg)

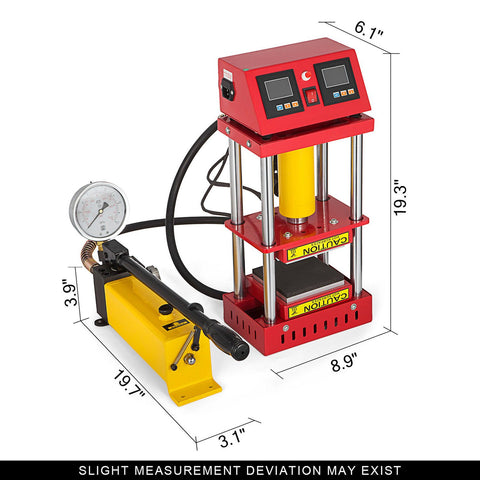

Package Dimensions (L x W x H): 20.9" x 18.1" x 16.1" (53 x 46 x 41 cm)

Package Content
1 X 4.7X4.7 Inch Rosin Heat Press Machine
