MK III Closed Loop Essential Oil Extractor. Stainless Steel 304
MK III Closed Loop Essential Oil Extractor. Stainless Steel 304

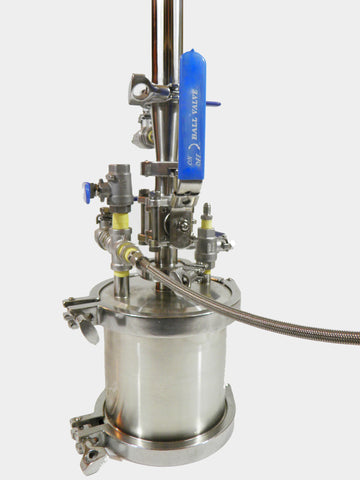

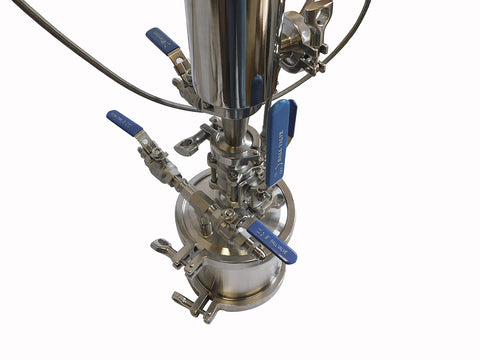

The MK III is a closed loop reclamation essential oil extractor designed by Skunk Pharm Research. These units are built and tested on site by our own Emerald Gold engineers and technicians.
This oil extractor is designed to be used with butane, hexane or propane. This MK III essential oil extractor comes in a variety of sizes, from a 1.5" x 12" (73 gram) column to a 3" x 36" (900 gram) column. You can choose your column size using the drop down tab above. You can also purchase additional columns and bases separately, either as upgrades or if you just need extras. The additional columns and bases can be found in other sections of our online store if you chose to purchase them separately.
The MK III essential oil extractor in this listing comes fully assembled by our engineers and technicians, and pressure tested to double the operating pressure.
The MK III essential oil extractor is manufactured out of 304 food grade stainless steel, and meets all of today's sanitary standards.
Parts List that will come with your fully assembled and tested MK III Essential Oil Extractor are as follows:
- (1) 6" Welded Lid for MK III Closed Loop Essential Oil Extractors
- (1) 1.5" Tri Clamp x 1/4" Female NPT Cap
- (1) 1.5" Tri Clamp End Cap
- (5) 1.5" Single Hinge Tri Clamps
- (1) Sanitary Tri Clamp Column (in size of your choosing)
- (1) 1.5" x 1" x 1/4" Concentric Reducer
- (1) 1" 3-Piece Ball Valve with Tri Clamp Fittings
- (2) 6" Single Hinge Tri Clamps
- (1) 6" x 6" Tri Clamp Base
- (1) 6" Tri Clamp End Cap
- (4) 1" Bore 1.5" Viton Gaskets
- (2) 6" Viton Gaskets
- (2) 1.5" 150 Mesh Viton Screen Gaskets
- (3) 1/4" 1000# WOG Valves
- (1) 3/8" 1000# WOG Valve
- (3) 1/4" Stainless Flares x 1/4" NPT
- (1) 3/8" Stainless Steel Close Nipple
- (2) 1/4" Stainless Steel Close Nipples
- (1) 3/8" Stainless Steel 4-Way Cross
- (2) 3/8" x 1/4" Stainless Steel Bushings
- (1) 3/8" Flare x 3/8" NPT Stainless Steel
- (1) 6' by 1/4" SAE Female PTFE Lined Stainless Steel Braided Hose
- (1) Roll PTFE Yellow Gas Tape
If you order this extractor with a 3" column, it will come with:
- (1) 3" to 1.5" Concentric Reducer
- (2) 3" Viton Gaskets
- (2) 3" 150 Mesh Screen Viton Gaskets
- (1) 3" x 1/4" Female NPT Stainless Steel Cap
- (1) 6" x 12" Tri Clamp Base
- (2) 6" High Pressure Clamp for added stability
ALSO AVAILABLE WITH 1.5" OR 3" DEWAXING COLUMN!!!!!!
Features:
- Closed Loop and Eco Friendly (Reclaim 99% of your solvent)- Expandable (Increase the sizes of not only your columns, but your collection pot as well!)
- Pressure tested at double the required pressure.
- Stainless Steel Construction
- Excellent Yields
Additional Items needed for operation:
- Recovery Pump
- Vacuum Pump
- Condensing Coil
- Recovery Tank
- Refrigerant Scale
- Butane
DETERMINING TRI CLAMP SIZE
Tri Clamp sizes are determined by the outer diameter of the pipe or tubing, not the outer diameter of the flange or Tri Clamp itself. The flange of a Tri Clamp fitting typically has about a ½” inch greater diameter than the outside diameter of the pipe. This can become especially confusing when the Tri Clamp fitting has no pipe attached to it, as is the case with adapters, For instance, a 1.5" Tri Clamp to 1/2" hose barb adapter is not 1.5" inches in any dimension, but the Tri Clamp end will fit any other 1.5" Tri Clamp fitting.
If you have any doubts about what size Tri Clamp fittings your project needs, simply measure the outside diameter of the flange (dimension "B" below) and consult the chart below, or feel free to contact us .
|
Pipe Outer Diameter |
Flange Outer Diameter |
Pipe Inner Diameter |
|
1" |
1.98" |
.87" |
1.5" |
1.98" |
1.37" |
|
2" |
2.52" |
1.87" |
|
2.5" |
3.05" |
2.37" |
|
3" |
3.58" |
2.87" |
|
4" |
4.68" |
3.83" |
|
6" |
6.57" |
5.78" |
|
8" |
8.57" |
7.78" |
|
10" |
10.57" |
9.69" |
|
12" |
12.57" |
11.81" |
Disclaimer:
Depending on the type of oil you are extracting, these product(s) may not be legal to operate in some areas. For safety reasons, these product(s) are designed and intended for outdoor use only. Emerald Gold, LLC strongly discourages any unlawful use of these product(s), and is not responsible for any damage or injury caused by the misuse or unlawful use of these product(s). Any person or entity that uses the equipment and/or information provided by Emerald Gold, LLC does so entirely at their own risk, and accepts all liability concerning the use of the product(s) and information listed above.
*WARNING* Never extract with butane or propane indoors. May cause serious injury, or even death.
